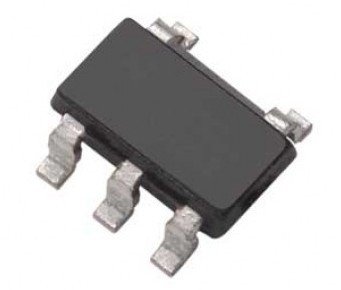

NJM2872F33 (LP2981) (7722)

1• Operating Input Voltage Range: 2.1 V to 16 V

• Ultralow-Dropout Voltage

• Output Voltage Accuracy 0.75% (A Grade)

• Specified 100-mA Output Current

• < 1-μA Quiescent Current when Shutdown

• Low Ground Pin Current at All Load Currents

• High Peak Current Capability (300 mA Typical)

• Wide Supply Voltage Range (16 V Maximum)

• Fast Dynamic Response to Line and Load

• Low ZOUT Over Wide Frequency Range

• Overtemperature and Overcurrent Protection

• −40°C to 125°C Junction Temperature Range

• Cellular Phones • Palmtop and Laptop Computers

• Personal Digital Assistants (PDA)

• Camcorders, Personal Stereos, Cameras

The LP2981-N is a 100-mA, fixed-output voltage regulator designed specifically to meet the requirements of battery-powered applications. Using an optimized Vertically Integrated PNP (VIP) process, the LP2981-N delivers unequaled performance in all specifications critical to batterypowered designs: Dropout Voltage: Typically 200 mV at 100-mA load, and 7 mV at 1-mA load. Ground Pin Current: Typically 600 μA at 100-mA load, and 80 μA at 1-mA load. Sleep Mode: Less than 1-μA quiescent current when ON/OFF pin is pulled low. Precision Output: 0.75% tolerance output voltages available (A grade). Assorted voltage options, from 2.5 V to 5 V, are available as standard products.
