K6R4016C1D-TC10 256Kx16 Bit High Speed Static RAM
Kategori
Marka
Stok Kodu
K6R4016C1D-TC10
Stok Adeti
667 Adet
Fiyat
13,75 USD + KDV
152,23 TL den başlayan taksitlerle!!
569,44 TL
256Kx16 Bit High Speed Static RAM(5.0V Operating).
FEATURES GENERAL DESCRIPTION
Operated at Commercial and Industrial Temperature Ranges.
FEATURES GENERAL DESCRIPTION
• Fast Access Time 10ns(Max.)
• Low Power Dissipation Standby (TTL) : 20mA(Max.) (CMOS) : 5mA(Max.) Operating K6R4016C1D-10 : 65mA(Max.)
• Single 5.0V±10% Power Supply
• TTL Compatible Inputs and Outputs
• Fully Static Operation - No Clock or Refresh required
• Three State Outputs • Center Power/Ground Pin Configuration • Data Byte Control : LB : I/O1~ I/O8, UB : I/O9~ I/O16
• Standard Pin Configuration
K6R4016C1D-J : 44-SOJ-400
K6R4016C1D-K : 44-SOJ-400(Lead-Free)

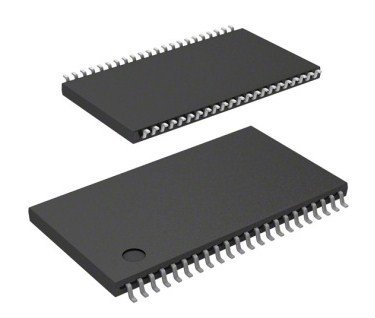

K6R4016C1D-T : 44-TSOP2-400BF
K6R4016C1D-U : 44-TSOP2-400BF (Lead-Free)
K6R4016C1D-E : 48-TBGA with 0.75 Ball pitch (7mm X 9mm)
• Operating in Commercial and Industrial Temperature range.
