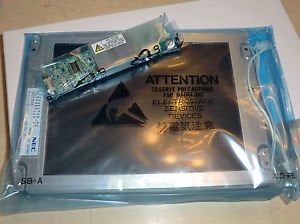

NL6448AC20-06 6.5inch LCD Screen Display

NL6448AC20-06 is a TFT(thin film transistor) active matrix color liquid crystal display(LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. NL6448AC20-06 has a builtin backlight. Backlight includes long-life-lamps and its lamps are replaceable. The 17cm diagonal display area contains 640 × 480 pixels and can display 4096 or 262144 colors simultaneously. NL6448AC20-06 is suitable for industrial application use, because the luminance is high, and the viewing direction is selectable by display scan select.



High luminance (200 cd/m2 Typ.: saturated value)

Low reflection ™ Wide viewing angle with retardation film

Display reverse scan function ™ 6-bit/4-bit digital RGB signals

Edge type backlight with long-life-lamps (Two lamp holders, inverter)

Variable luminance control

Backlight lamp holder (65LHS-3L) replaceable

Compatible to the mounting hole position of NL6448AC20-02 except for inverter.



Measuring instruments ™ Display terminals for control system

New media

Control boards for NC machine

Monitor for process controller



Panel Model	NL6448AC20-06
Panel Brand	NEC
Descrition	a-Si TFT-LCD ,6.5 inch, 640×480
Panel Type	a-Si TFT-LCD
Display Mode	TN, Normally White, Transmissive
Active Area	132.48×99.36 mm
Outline	178.8×126.8 mm
Surface
Contrast Ratio	150:1 (Typ.)
Display Colors	4096/262K (4-bit / 6-bit) , CIE1931 45%
Response Time	40 (Typ.)(Tr)
Viewing Angle	50/50/35/45 (Typ.)(CR≥10) (L/R/U/D)
Frequency	60Hz
Lamp Type	2 pcs CCFL Embedded (Inverter)
Signal Interface	CMOS (1 ch, 4/6-bit) , 31 pins
Input Voltage	5.0V (Typ.)

NL6448AC20-06_NEC.pdf
