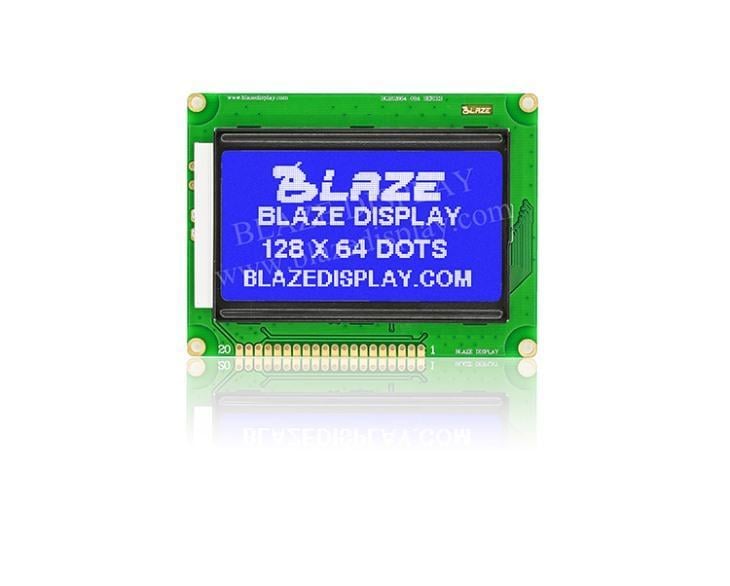

BGB12864-09A-BLUE
Part Number:BGB12864-09A
● Character LCD 128 x 64 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Bulit-in controller ((NT7108C or Equivalent)
● +3.3V / +5.0V power supply
● 1/64 duty , 1/9bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
VSS |
Ground(0V) |
|
|
2 |
VDD |
Power supply for logic(+5.0V) |
|
|
3 |
V0 |
Contrast Adjustment |
|
|
4 |
RS |
Data/ Instruction select signal |
|
|
5 |
R/W |
Read/Write select signal |
|
|
6 |
E |
Enable signal |
|
|
7~14 |
DB0~DB7 |
Data bus line |
|
|
15 |
CS1 |
Chip select signal |
|
|
16 |
CS2 |
Chip select signal |
|
|
17 |
/RST |
Reset signal |
|
|
18 |
VOUT |
Negative voltage output |
|
|
19 |
LED-A |
Power supply for backlight (+5.0V) |
|
|
20 |
LED-K |
Ground for backlight(0V) |
|
