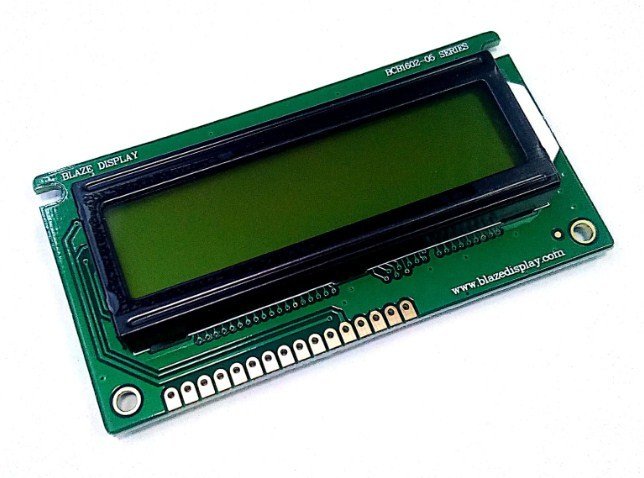

BCB1602-05-GREEN
Kategori
Marka
Stok Kodu
BCB1602-05-GREEN
Stok Adeti
0 Adet
Fiyat
3,85 USD + KDV
39,83 TL den başlayan taksitlerle!!
149,01 TL
Outline size（mm）： 84.00 × 44.00 × 11.80
Viewing Area： 64.30 × 16.00
Active Area： 55.46× 10.76
Controller IC： ST7066U or Eqv.
Interface： Parallel
Backlight：LED
Viewing Area： 64.30 × 16.00
Active Area： 55.46× 10.76
Controller IC： ST7066U or Eqv.
Interface： Parallel
Backlight：LED
Remarks： 1×16PIN
|
Interface Pin Function |
|||||||||||
|
Pin No. |
Symbol |
Description |
|||||||||
|
1 |
VSS |
Ground |
|||||||||
|
2 |
VDD |
Power supply for logic |
|||||||||
|
3 |
VO |
Contrast Adjustment |
|||||||||
|
4 |
RS |
Data/ Instruction select signal |
|||||||||
|
5 |
R/W |
Read/Write select signal |
|||||||||
|
6 |
E |
Enable signal |
|||||||||
|
7~14 |
DB0~DB7 |
Data bus line |
|||||||||
|
15 |
LED-K |
Backlight ground |
|||||||||
|
16 |
LED-A |
Backlight power supply |
|||||||||
|
Mechanical Data |
|||||||||||
|
Item |
Standard Value |
Unit |
|||||||||
|
Module Dimension |
84.0 x 44.0 |
mm |
|||||||||
|
Viewing Area |
64.3 x 16.0 |
mm |
|||||||||
|
Mounting Hole |
79.0 x 36.0 |
mm |
|||||||||
|
Character Size |
2.96 x 5.16 |
mm |
|||||||||
|
Electrical Characteristics |
|||||||||||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
||||||||
|
Input Voltage |
VDD |
5 |
V |
||||||||
|
Recommended LCD Driving |
VDD-VO |
3.7 |
V |
||||||||
|
Display Character Address Code |
|||||||||||
|
Display Position |
1 |
2 |
|
|
|
|
|
16 |
|||
|
DD RAM Address |
0 |
0F |
|||||||||
|
DD RAM Address |
40 | 41 | 4F |
||||||||
